How emergency calling works from various deployment scenarios: SfB Server

Posted on by
2

At a recent user group meeting, an attendee asked about all of the various call flows for emergency calls, from Skype for Business Server, Skype for Business Online, hybrids, and Teams. Over the next couple of posts, I’ll cover how the various scenarios work. First up, Skype for Business server.

SfB Server has native emergency calling functionality, using Location Policies, Sites, and Subnets. You can use this functionality to override the caller ID (thus setting an ELIN, or Emergency Location Identification Number), and routing it out via the appropriate gateway. You can also turn on alerting via IM, though this doesn’t do a lot of good unless you go to the next step…

SfB Server also has a Location Information Service, or LIS. This service uses the BSSID (the access point and channel a device is connected to), subnet, switch port, or switch to location the endpoint. Additionally, you can integrate with 3rd party servers/services that perform this LIS role. Some of the 3rd party services may perform better if you need to get down to the switch/switchport level to determine a location. The various locations (ERL, or Emergency Response Location) are programmed by you into the LIS, and associated with the subnet/BSSID/switch/switchport data. Yeah, this is a LOT of work to keep up! You enter the location in a format called MSAG, or Master Street Address Guide. This is a strict format that helps avoid confusion, especially when you get into suite numbers, floor numbers, and things like “east”. I have seen addresses like “235 East Highway 16 West”. It’s important to get things in the right place!

Once SfB knows your location from the LIS process, it includes the address in PIDFLO (Presence Information Data Format Location Object) in the SIP header that it sends to the gateway. There are a couple of connectivity options here:

If you have a gateway with ELIN capability (and licenses), the gateway can use the PIDFLO to select an ELIN, then send the call via the PSTN to the PSAP. If the PSAP needs to call back, the ELIN gateway maintains the translation for 30 minutes (usually configurable if 30 minutes doesn’t work for you).

If you’re in multiple PSAP jurisdictions, you’ll need to have a SIP trunk PSTN service that covers these, or if you can’t get a SIP trunk that does that, or if you’re using PRIs, you may need to route the emergency call gateway to gateway within your organization to reach the gateway that is in the correct location. You can make these routing decisions based on the ELIN (oh, 425-123-xxxx is Redmond, so send the call to that gateway, then send it to 911). You can’t route using 911 as the destination address, so this can turn into a bit of a routing mess.

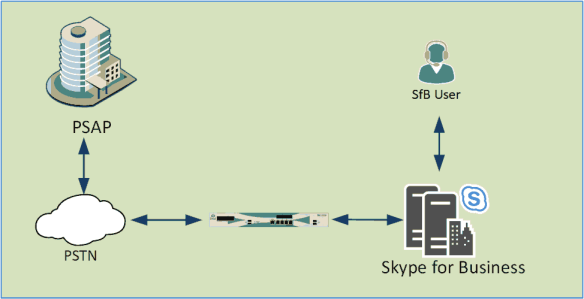

An emergency call goes from a user to SfB Servers to a gateway, then via the PSTN to the PSAP

Routing emergency calls is easy when you only have one site.

If you want to avoid the routing headaches just described, you can also use 3rd party solutions from companies like West and RedSky. They have the LIS systems described above, but can also handle the ELIN translation function, and add enhanced notification/alerting options. Both offer services where your emergency calls are sent to their response centers, and then routed to the appropriate PSAP. This routing takes place automatically if the information included (think PIDFLO) is valid and matches their records. If it’s not, an operator answers the calls, gathers location information, and sends the call to the appropriate PSAP.

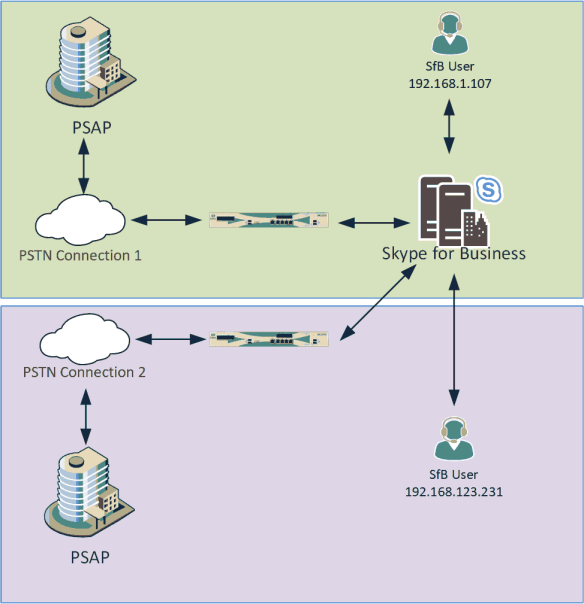

SfB users in two sites place calls, via the same SfB Servers, but then to different PSAPs via different gateways and PSTN services

Emergency call routing is more complex with multiple sites and/or multiple PSTN services. You MUST route emergency calls to the correct PSAP!

When you use these services, you also gain the option to have your receptionist/security desk conferenced into the call. This may be listen-only, or they may be able to speak (listen only keeps the call taker at the PSAP from getting confused as to what’s going on at the scene… Call taking is stressful. Take the stress of a help desk employee trying to decipher a technology problem over the phone, and now add the pressure of time and safety.) The conference function allows the reception/security desk personnel to take action locally – send a security or first aid team to the location, evacuate the building, meet emergency responders to direct them to the site.

Next up, we’ll hop online and see what Skype for Business Online and MS Teams can do for us, when using PSTN Calling services from Microsoft.

Teams, e911 dynamic locations, and Location Based Routing

Posted on by
2

Two features that have been noticeably missing from Microsoft Teams are LBR (Location Based Routing) and dynamic location support for e911. Both have been available for on-prem deployments since the days of Lync. With this announcement https://techcommunity.microsoft.com/t5/Microsoft-Teams-Blog/Additional-Voice-Features-for-the-New-Year/ba-p/295062 LBR is now in preview and is expected to be generally available by the end of Q1.

What is LBR
In Skype for Business, users are assigned a voice policy. That policy links usages and routes. Together, these determine whether the user is permitted to call a number, and what path through the system the call will take. If William from New York is in his office and calls a customer down the street, that call will travel through the SfB system and exit to the PSTN in New York. If William travels to Los Angeles and calls that same customer, the call will flow back to the New York office (via the WAN if William is on the corporate network, otherwise via the Internet and Edge server) and will exit to the PSTN in New York.

In some countries, this type of routing isn’t permitted. When William is in Los Angeles, the call to his customer in New York must flow via the PSTN. There may also be restrictions on when you can blend PSTN and SIP calls in a conference. For example, you may be able to have PSTN callers join a SfB meeting, but only from one location. Thus, instead of call routing being done via the policies assigned to the user, we have Location Based Routing – the call routing is determined by the location of the caller.

In SfB, configuring LBR meant entering your IP subnets and assigning them to sites. Each site would then be configured to route PSTN calls via a particular gateway. Further policies within SfB would do things like block two PSTN sites from joining a conference.

The challenge in trying to build something like LBR in Teams versus in SfB comes down to the uniqueness of the IP address, which is used to establish the users location. In SfB, your office and favorite coffee shop might share the same IP subnet, however SfB knew if you were on the corporate network or not based on whether your client was connected directly to your Front-End pool, or was connecting via the Edge pool.

With Teams, the Edge and Front-End infrastructure isn’t there to help disambiguate the subnet that a user is on. Reading through the LBR documentation https://docs.microsoft.com/en-us/microsoftteams/location-based-routing-configure-network-settings we can see a new cmdlet

New-CsTenantTrustedIPAddress

This cmdlet lets you define your external IP address and assign them to your tenant. For example

New-CsTenantTrustedIPAddress -IPAddress 198.51.100.0 -MaskBits 30 -Description “HQ Internet”

When your Teams client or device traverses a NAT firewall and has a matching public IP, the tenant now knows that this Teams client/device is on an internal network, and it can apply LBR according to the internal subnets and sites that you’ve defined.

What about e911?

Emergency calling (e911) and LBR both require the same underlying technology to be able to identify a user’s location. With this basic foundation in place, we can likely expect to see subnet-based location policies for e911 soon. There’s still some additional work to be done, as at a minimum Teams will need to provide for masking/translating a user’s DID and replacing it with a number that’s unique to the location of the user when 911 is called.Subnets may not meet legal requirements for the granularity of the location that’s reported. In Skype for Business Server, there’s the LIS (Location Information Service) database and the ability to embed PIDF-LO (
Presence Information Data Format Location Object) – aka your location – into SIP packets. These allows a client to be located by the access point, switch port, or switch that they’re connected to. SfB Server talks to external LIS databases that may be provided by vendors like West or Redsky, who take on the task of determining the users location and providing it to SfB.

None of this functionality exists in Teams yet, and it’s all required to do proper granular, dynamic location determination for emergency calling, natively in Teams.
