Teams Network Roaming Policies

Roaming policies are a relatively new addition to Microsoft Teams. Their predecessor in Skype for Business was called Call Admission Control, which is an industry term for “should I admit this call onto the link it’s destined for, or will that overload it and cause issues?”.

The SfB configuration for CAC was (is?)…. not fun. You needed to build out policies based on each sites connection to other sites and regions, you had to sort per-user and per-site restrictions, and you had to make broad assumptions around how much bandwidth particular calls may consume. It did allow for calls to be placed from one SfB user to another via the PSTN in situations where the WAN link was at capacity (or down), and that configuration was fun. (Or maybe I was just tired?)

But Dear Reader, bandwidth consumption is highly dependent on payload/user activity! For example, a video of a user sitting in front of a webcam, in front of a blank wall, will consume different amounts of bandwidth if that user is wearing a plain shirt versus a patterned shirt. Why? Video compression/encoding depends on changes between frames, and a patterned shirt will result more changes than an equivalent plain shirt. So I’m supposed to plan bandwidth consumption based on the shirts people wear? Well no, that’s just one example. Screenshares of a static document will consume less than a video, or a screenshare of a web page with ads popping up all over the place. A voice through an SBC call may flip to G711 and consume 64k (plus overhead) across a WAN, where as a voice call between two clients may use a “better” protocol and consume 8 or 16k.

A second consideration was that CAC couldn’t account for backup WAN links, or SDWAN capabilities, it only used the values you told it were available between the two sites. If you had a backup link that had a lower bandwidth and you were adventurous, you could try to restrict usage over that backup link using things like DSCP priority tags – you could, for example, block video traffic from the backup link, allowing voice traffic through.

The other complication with CAC, is that it didn’t take in to consideration what the actual available amount of bandwidth on the link was. You had to ballpark that “this is a 100Mb WAN link, and we’ll say that SfB can use 10Mb of that”. Well, if the actual available bandwidth is 40Mb, why are we restricting SfB to 10Mb? There were thoughts and some options about software defined networks and having the network able to talk to the applications and make dynamic decisions, but that sounds like as much fun as dumping a couple dozen forks in your bed and trying to go to sleep.

When Teams launched, there was no consideration for CAC until Roaming Profiles came along. Roaming profiles greatly simplify things. You don’t need to indicate the size of any links, which makes sense given that Teams could use WAN/SDWAN links or Internet connectivity, and that WAN/SDWAN links might be running as VPNs over the Internet link anyway. The net result is that you can restrict whether users in that site can use video, and the maximum media bitrate that each user can consume.

How this works is pretty simple. The parameters is this policy (applied to the site) override the parameters in the user’s policy (either the global or per user policy), while the user is in the site.

And one more catch: There’s another policy setting that allows the Roaming Policy to take effect if the user isn’t voice enabled:

To enable the network roaming policy for users who are not enterprise voice enabled, you must also enable the AllowNetworkConfigurationSettingsLookup setting in TeamsMeetingPolicy. This setting is off by default.




Note that the explanation in Teams Admin Center (if you hover your mouse over the i) isn’t clear about the fact this setting is only for non-voice users.

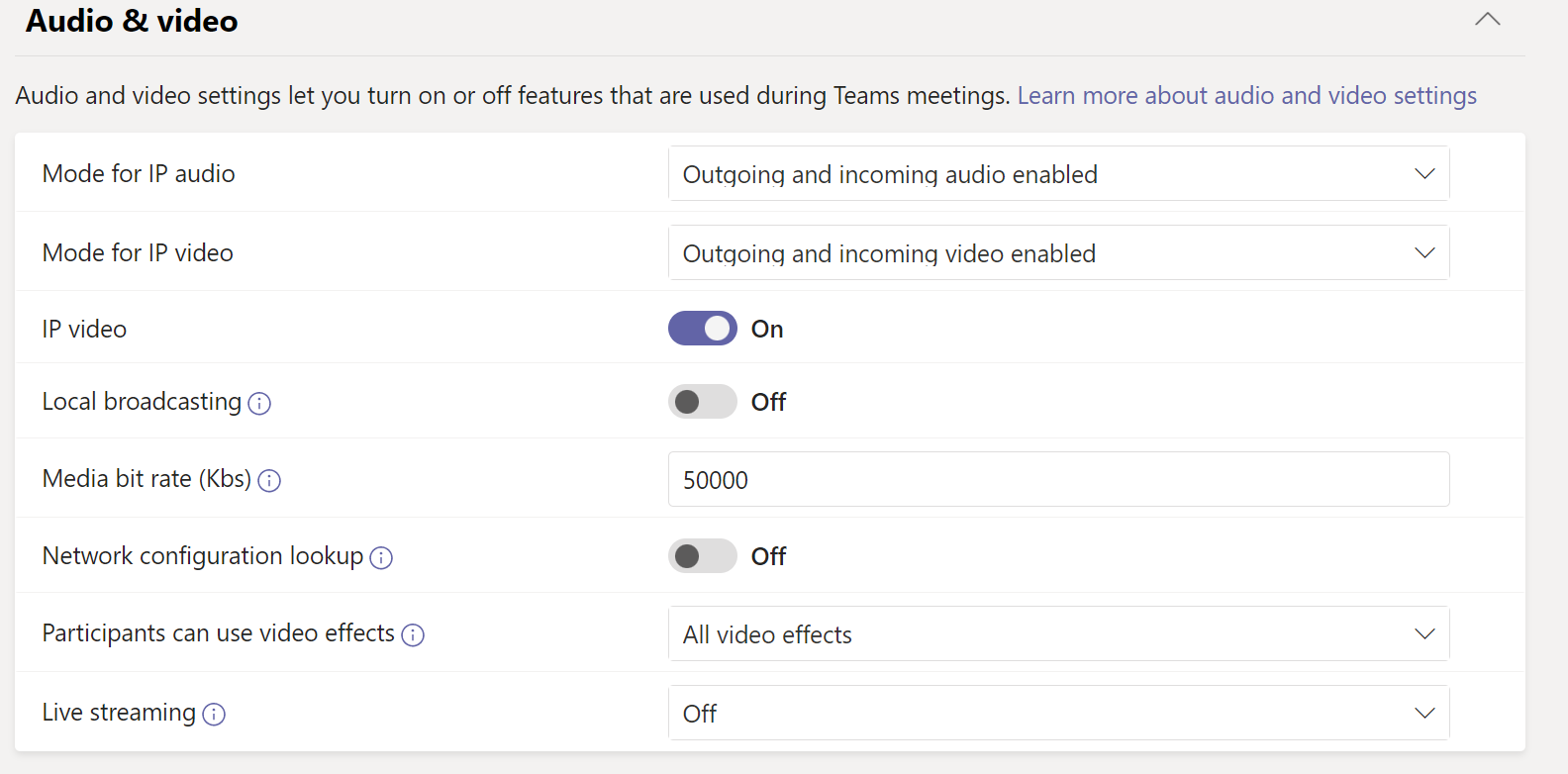

 From Teams Admin Center:

If this policy isn’t configured, then the roaming policy won’t kick in for non-voice users. If you deploy roaming policies, you will likely want to flip this setting on all global and user policies.
